Anti rust high quality galvanized iron wire

Galvanized iron wire is a type of binding wire that has been coated with zinc to resist corrosion and rust. The process of galvanization(electro-galvanized,hot dipped galvanized) involves creating a protective layer on the surface. This makes the galvanized iron wire suitable for outdoor use and in environments where moisture and other corrosive elements are present. The galvanized iron wire is commonly used in fencing, binding, and construction reinforcement due to its durability and cost-effectiveness compared to stainless steel alternatives.

Inquire Now Next Product

Specification

Product name	Galvanized iron wire,galvanized low carbon steel wire
Surface treatment	Hot dipped galvanized/electro-galvanized
Material	low carbon steel wire(q195/q235)
Color	Silver
Packing	Plastic inner and outer knitting, inner plastic outer hemp, carton, pallet

Features:

Corrosion resistance: The zinc coating provides excellent protection against rust and corrosion, especially in outdoor environments.
Longevity: The lifespan of galvanized iron wire is significantly extended due to the protective zinc layer.
Cost-effective: Galvanized iron wire is typically less expensive than stainless steel wire while still offering good corrosion resistance.
Versatility: Galvanized iron wire can be used in a wide range of applications, including fencing, binding, construction reinforcement, and more.

The galvanized iron wire are widely used as binding wire for construction and woodworking projects.

Anti rust high quality galvanized iron wire

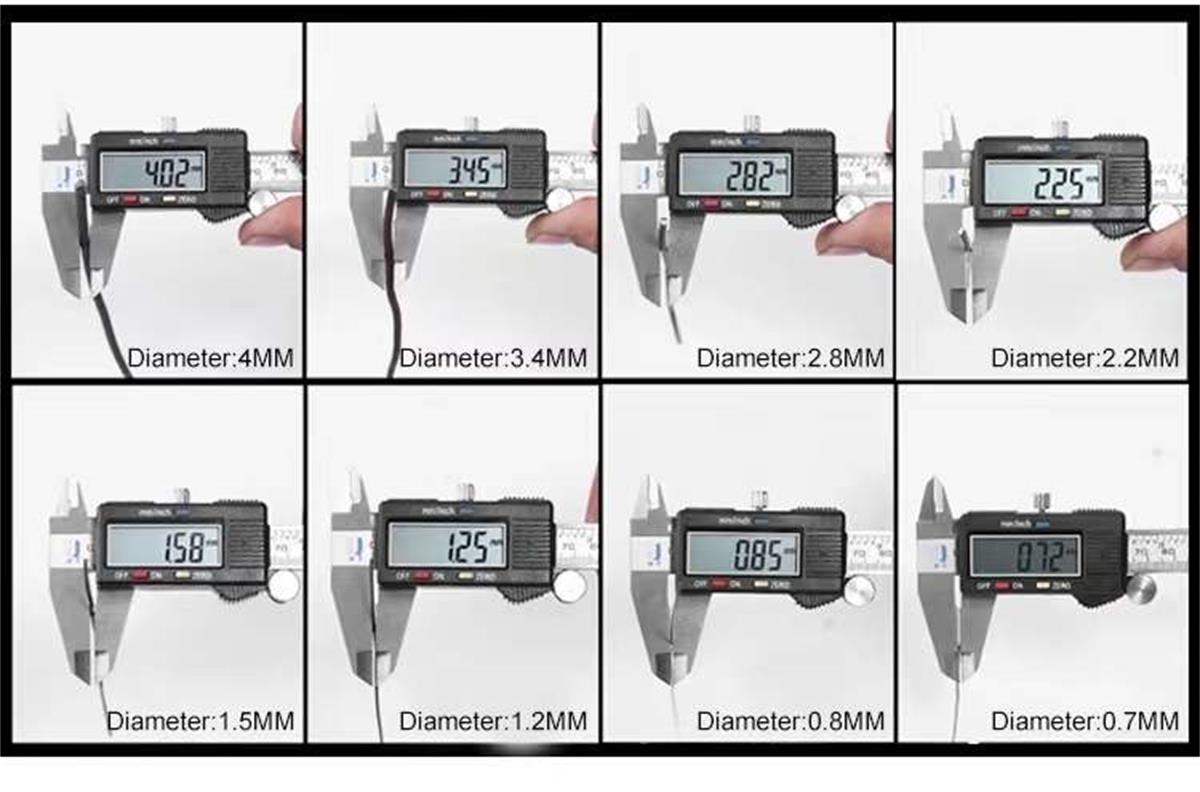

Size chart:

No.	Diameter(mm)	Tensile Strength(n/mm2)	Zinc Thickness(g/m2)	Weight of unit coil(kg)
5.5~6#	5.00	300~1500	30~100	400~600
7#	4.57	300~1500	30~100	400~600
8#	4.19	300~1500	30~100	400~600
9#	3.76	300~1500	30~100	400~600
10#	3.40	300~1500	30~100	400~600
11#	3.05	300~1500	30~100	400~600
12#	2.77	300~1500	30~80	400~600
13#	2.41	300~1500	30~80	400~600
14#	2.11	300~1500	30~80	400~600
15#	1.83	300~1500	30~80	400~600
16#	1.65	300~1500	30~80	25~500
17#	1.47	300~1500	30~80	25~500
18#	1.24	300~1500	≥12	25~500
19#	1.07	300~1500	≥12	25~500
20#	0.89	300~1500	≥12	25~400
21#	0.81	300~1500	≥12	25~400
22#	0.71	300~1500	≥12	25~200
23#	0.64	300~1500	≥12	25~150
24#	0.56	300~1500	≥12	10~150
25#	0.51	300~1500	≥12	10~100
26#	0.46	300~450	≥12	10~50
27#	0.41	300~450	≥12	10~50
28#	0.36	300~450	≥12	10~50
29#	0.33	300~450	≥12	10~50
30#	0.30	300~450	≥12	5~20
30.5#	0.28	300~450	≥12	5~20
