PVC coated gabion cages are essentially gabion cages that have a layer of Polyvinyl Chloride (PVC) coating over the wire mesh. This coating serves to enhance the durability and resistance of the PVC coated gabion cages.

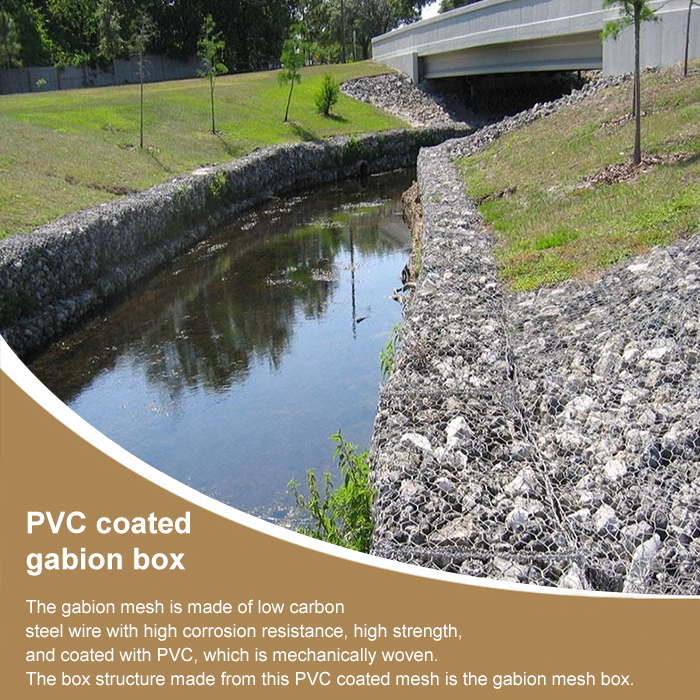

The PVC coating gabion cage is to provide additional protection against corrosion and rust, which is particularly crucial in water applications like river bank stabilization. The PVC coating acts as a barrier against moisture, thereby extending the lifespan of the gabion cage.
Specification
| Product name: | PVC coated gabion mesh box-rock box/PVC coated gabion cage/Hexagonal Gabion Basket |
| Material: | Zinc coated wire, low carbon steel iron wire |
| Color: | White, blue, green, etc |
| Wire gauge： | 2.0mm-8mm |
| Surface treatment: | PVC coated |
| Hole shape: | Hexagonal or square |
| Packing: | Bundle |
| Application: | Protect and conserve riverbanks,build and consolidate dykes, build retaining walls for roads, rail lines, and any kind of works where earth retaining is required. |
 |  |
Feature:
Corrosion resistance: The PVC coating provides an extra layer of protection against rust, making the PVC coated gabion mesh more durable and longer-lasting.
Weather-resistant: The PVC coating protects the gabion mesh from harsh weather conditions such as rain, snow, and UV radiation, which can cause the metal to deteriorate over time.
Color options: PVC coated gabion mesh is available in a variety of colors, including green, black, and brown, which can be useful for aesthetic or functional purposes.
| Length | width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M³ | length+-3% width+-5% height+-5% Mesh 60X80MM 80X100MM 100X120MM |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | |
| 2 | 1 | 0.5 | 1 | 1 | |
| 3 | 1 | 0.5 | 2 | 1.5 | |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | |
| 1.5 | 1 | 1 | 0 | 1.5 | |
| 2 | 1 | 1 | 1 | 2 | |
| 3 | 1 | 1 | 2 | 3 | |
| 4 | 1 | 1 | 3 | 4 |
 |  |
