In terms of production, gabion cages are made from high-quality, durable, and corrosion-resistant galvanized wire mesh. The galvanized gabion box is designed to withstand harsh environmental conditions and resist the force of water currents.

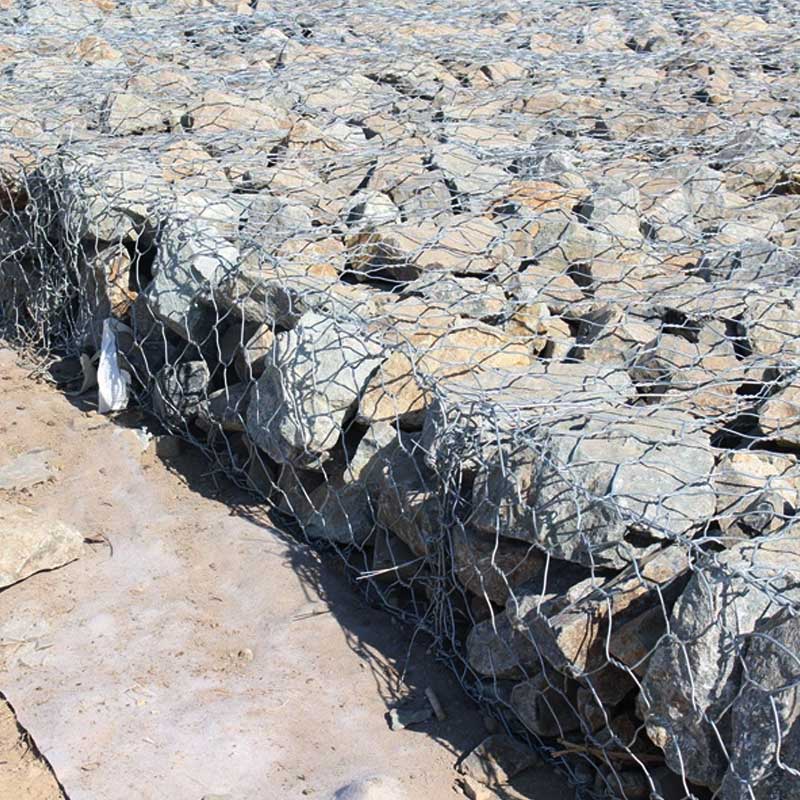

For river applications, gabion cages are used for bank stabilization, erosion control, and flood management. The galvanized gabion cage act as a protective shield against the destructive forces of water currents, reducing the speed of water flow and preventing soil erosion.
Specification
Gabion mesh is a type of wire mesh made from high-quality low carbon steel wire materials. Generally, people use galvanized gabion mesh with hexagonal mesh holes. The high-quality wire provides the gabion mesh with certain strength and load-bearing capacity, while the galvanization process makes the galvanized gabion cage resistant to rust, making the galvanized gabion box more suitable for use in river environments.
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M³ | length+-3% width+-5% height+-5% Mesh 60x80mm 80x100mm 100x120mm |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | |
| 2 | 1 | 0.5 | 1 | 1 | |
| 3 | 1 | 0.5 | 2 | 1.5 | |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | |
| 1.5 | 1 | 1 | 0 | 1.5 | |
| 2 | 1 | 1 | 1 | 2 | |
| 3 | 1 | 1 | 2 | 3 | |
| 4 | 1 | 1 | 3 | 4 |
