8ft height 50m length galvanized cattle fence

The cattle fence, also known as a livestock fence or ranch fence, is a type of wire mesh fencing designed specifically for enclosing and protecting livestock, particularly cattle. The field cattle fence is constructed to withstand the physical demands of large animals, preventing them from escaping while also protecting them from predators.

Specification

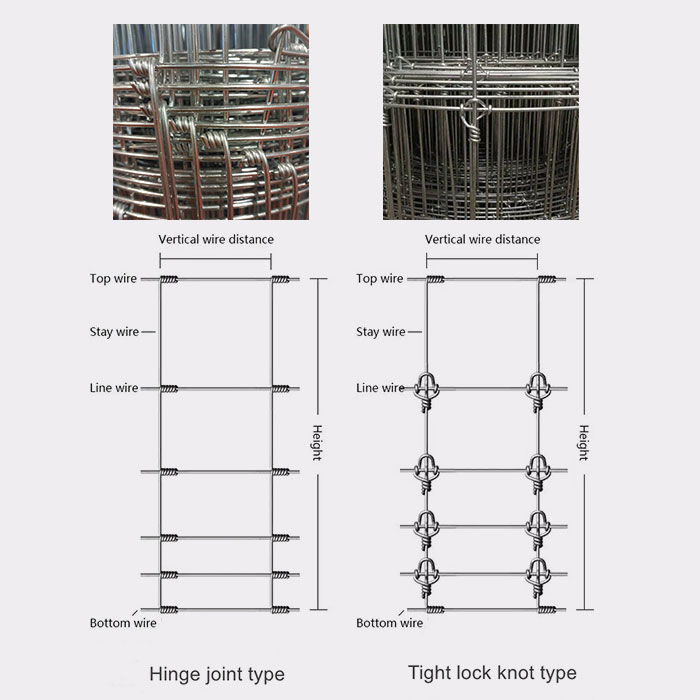

The field fence, characterized by its four wrap knots or joints created by intertwining two vertical stay wires, is designed to yield under pressure but then bounce back to its original shape. This unique hinged knot feature ensures ongoing protection, superior strength, and flexibility throughout the entire fence. This type of fencing is commonly used in the farms and pastures of countries like the USA, Canada, South Africa, and Australia.

The field fence is woven by high tensile hot dipped(or electro) galvanized low carbon steel wire. The cattle fence is a type of very economical fence for the farm.

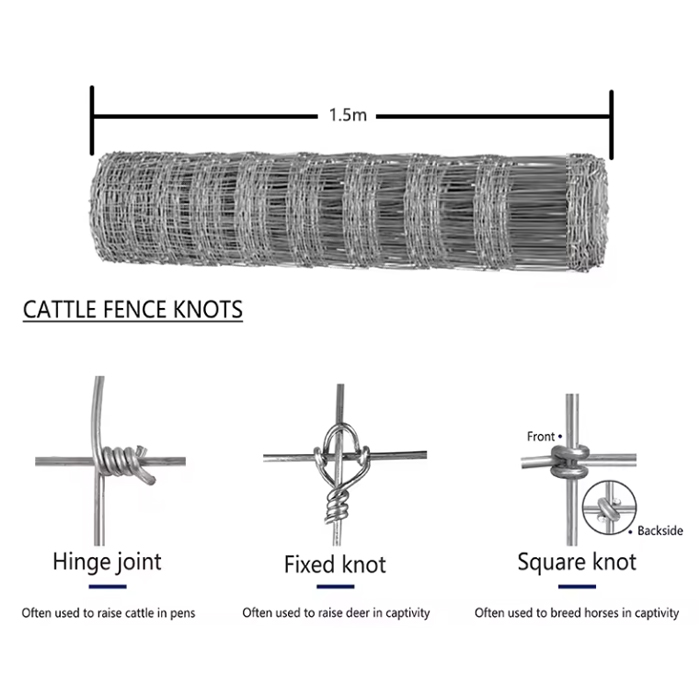

Farm fence can be woven with different typesof knots: fixedknots, hinge joint knots or other custom patterns.

8ft height 50m length galvanized cattle fence8ft height 50m length galvanized cattle fence


Application: The galvanized field fence is used for grassland, pastures, protection of ecological projects, protecting grassland, forestry, highway, and other sites.


Packing:

1.Nude packing

2.Plastic film

3.Wood pallet


Size chart:

Filler wire gauge
(mm)
Line wire number
(mm)
Top and bottom wire gauge
(mm)
Mesh opening
(inch)
Height
(inch)
Length
(inch)
12.5
10
10
2" × 4"
36"
100"
12.5
10
10
2" × 4"
36"
100"
12.5
13
10
2" × 4"
48"
100"
12.5
13
10
2" × 4"
48"
100"
12.5
16
10
2" × 4"
60"
100"
12.5
16
10
2" × 4"
60"
100"
12.5
19
10
2" × 4"
72"
100"
12.5
19
10
2" × 4"
72"
100"
12.5
19
10
2" × 4"
72"
200"
12.5
13
10
2" × 4"
48"
200"
12.5
13
10
2" × 4"
48"
200"
12.5
16
10
2" × 4"
60"
200"
12.5
16
10
2" × 4"
60"
200"
12.5
13
10
2" × 4"
48"
300"
12.5
13
10
2" × 4"
48"
300"
12.5
13
10
2" × 4"
48"
100"
14
13
10
2" × 4"
48"
200"
14
16
10
2" × 4"
60"
100"
14
16
10
2" × 4"
60"
200"
14
16
10
2" × 4"
72"
100"

Remarked:Besides those above mentioned specification,the others can be made according to customer's requirement.
