China high quality expanded steel wire mesh

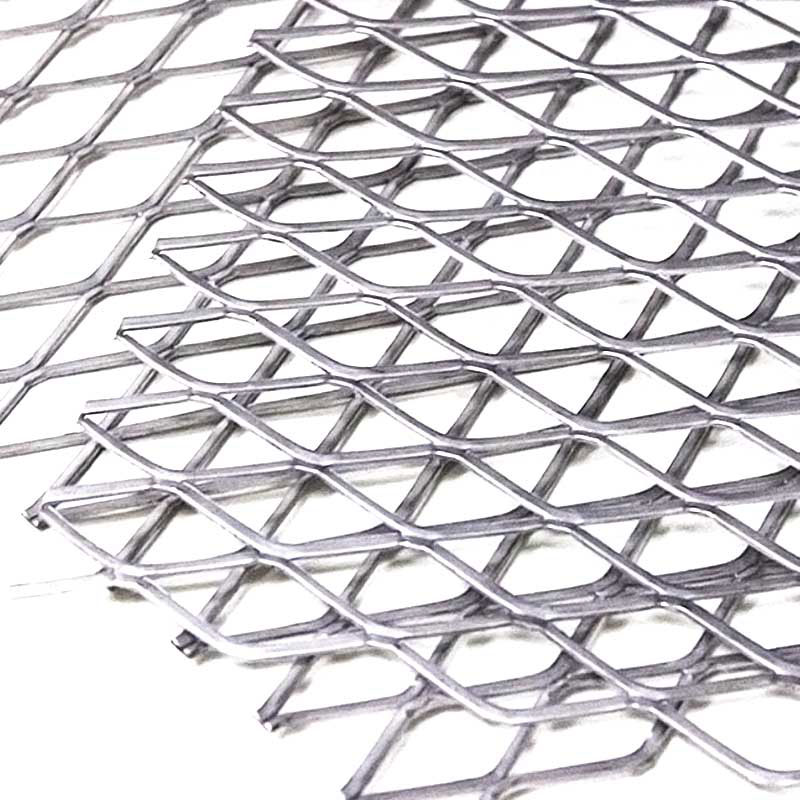

Expanded wire mesh is a robust and versatile wire mesh made from sheets of metal, such as high carbon steel,which are slit and stretched to create diamond-shaped openings. This one-piece expanded wire mesh provides superior strength and durability, while remaining lightweight. Expanded wire mesh is available in various sizes and materials, suitable for diverse applications like architecture, filtration, and security screens.

Specification

Product name

Expanded wire mesh
MaterialHigh carbon steel(#45)
Wire mesh types

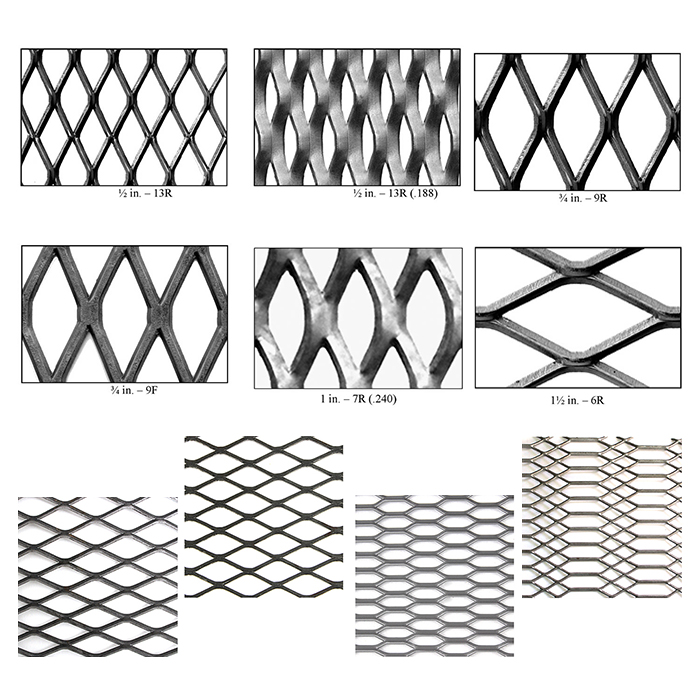

Standard mesh,flattened mesh

The high carbon steel expanded wire mesh is formed by cutting and stretching a whole steel plate, featuring evenly distributed diamond-shaped holes.

The steel sheet sizes are:1m*2m, 1.2m*2.4m, 1.22m*2.44m, 1m*3m etc other size can be customized.

China high quality expanded steel wire meshChina high quality expanded steel wire mesh

Features:

  • Durability: Being made from steel, the expanded wire mesh boasts high strength and longevity. It's resistant to weather, corrosion, and impact, making the expanded wire mesh suitable for both indoor and outdoor applications.

  • Versatility: Its unique diamond-shaped pattern allows the expanded wire mesh to be used in a wide variety of applications, including but not limited to, architecture, fencing, grating, and construction.

  • Visibility and Ventilation: The diamond-shaped holes allow for excellent ventilation and light passage, making the expanded wire mesh  an ideal choice for designs that require both security and visibility.


Packing:

Each pcs/roll packing by paper, 1-4 rolls/1-50pcs in a wooden box;


Size chart:



Design size

(MM)


Plate size

(MM)

SWD

LWD

thickness

width

10

25

0.8

1

10

25

1

1.1

10

25

1.2

1.1

12

30

1.2

1.5

12

30

0.8

1.4

16

38

1

2

16

38

1.5

2

16

38

1.5

2.8

16

38

2

2.8

15

40

1

1.7

15

40

1.2

1.7

15

40

1.5

1.7

18

50

1.2

2.0

18

50

1.5

2

18

50

2

2

22

50.8

2.3

2.5

22

57

1.5

2.8

22

5

2

2.8

22

57

3

3.5

22

60

1.5

2.5

22

60

2

2.5

35

16

2

3

35

16

3

4.5

24

60

3

3

24

60

2.5

3

36

100

2.5

4.1

36

100

3

4.1
