Home / Fence Systems / Expanded Mesh / Hot sale heavy duty high low carbon steel expanded metal mesh

Hot sale heavy duty high low carbon steel expanded metal mesh

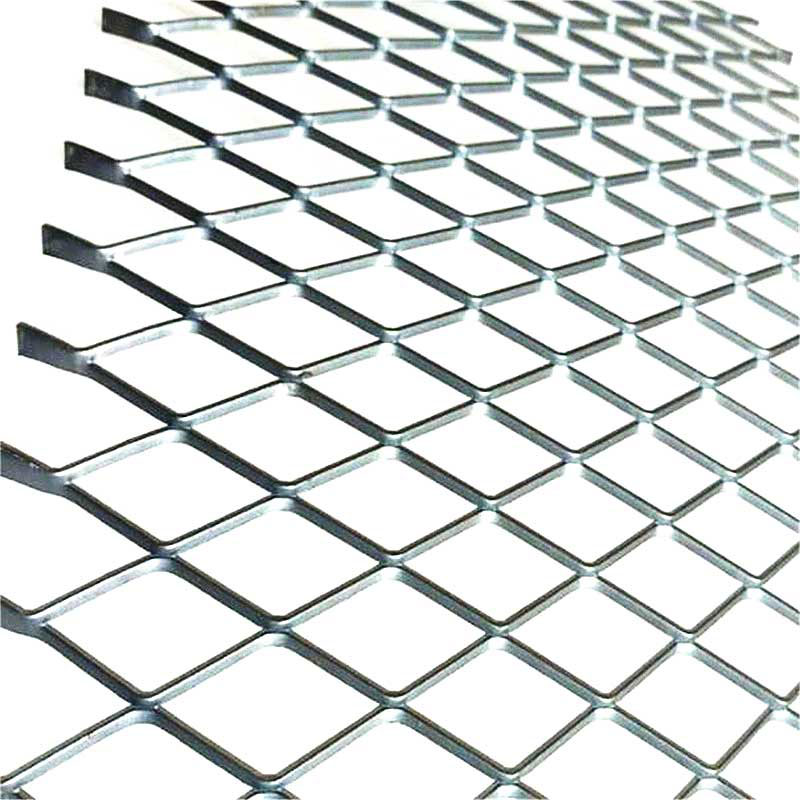

Expanded wire mesh is a robust and versatile wire mesh made from sheets of metal, such as high quality low carbon ssteel,which are slit and stretched to create diamond-shaped openings. This one-piece expanded wire mesh provides superior strength and durability, while remaining lightweight. Expanded wire mesh is available in various sizes and materials, suitable for diverse applications like architecture, filtration, and security screens.

Inquire Now Next Product

Specification

High quality low carbon steel expanded wire mesh is a versatile, durable material made by slitting and stretching a single sheet of low carbon steel. The result is a diamond-shaped pattern that combines aesthetics and functionality. Its key features include corrosion resistance, making the expanded wire mesh ideal for harsh environments, and high durability, allowing the expanded wire mesh to withstand physical stress. This expanded wire mesh is used in various applications, such as fencing, grating, and construction, due to its strength, longevity, and ability to allow light and air passage. Its unique blend of features makes the expanded wire mesh a cost-effective, secure, and visually appealing solution for many projects.

Hot sale heavy duty stainless steel expanded metal mesh

Packing:

Each pcs/roll packing by paper, 1-4 rolls/1-50pcs in a wooden box;

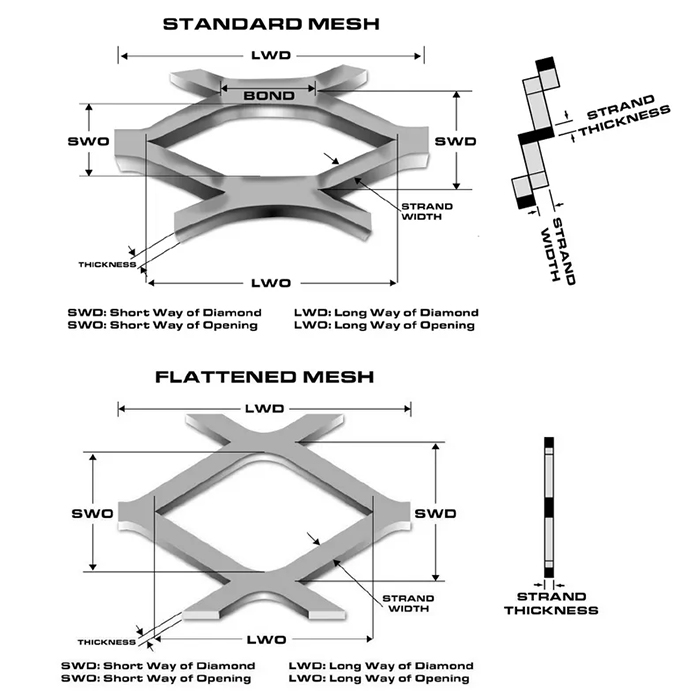

Size chart:

Design size (MM)		Plate size (MM)
SWD	LWD	thickness	width
10	25	0.8	1
10	25	1	1.1
10	25	1.2	1.1
12	30	1.2	1.5
12	30	0.8	1.4
16	38	1	2
16	38	1.5	2
16	38	1.5	2.8
16	38	2	2.8
15	40	1	1.7
15	40	1.2	1.7
15	40	1.5	1.7
18	50	1.2	2.0
18	50	1.5	2
18	50	2	2
22	50.8	2.3	2.5
22	57	1.5	2.8
22	5	2	2.8
22	57	3	3.5
22	60	1.5	2.5
22	60	2	2.5
35	16	2	3
35	16	3	4.5
24	60	3	3
24	60	2.5	3
36	100	2.5	4.1
36	100	3	4.1
