Expanded wire mesh is a robust and versatile wire mesh made from sheets of metal, such as stainless steel,which are slit and stretched to create diamond-shaped openings. This one-piece expanded wire mesh provides superior strength and durability, while remaining lightweight. Expanded wire mesh is available in various sizes and materials, suitable for diverse applications like architecture, filtration, and security screens.
Specification
Product name | Expanded wire mesh |
| Material | Stainless steel |

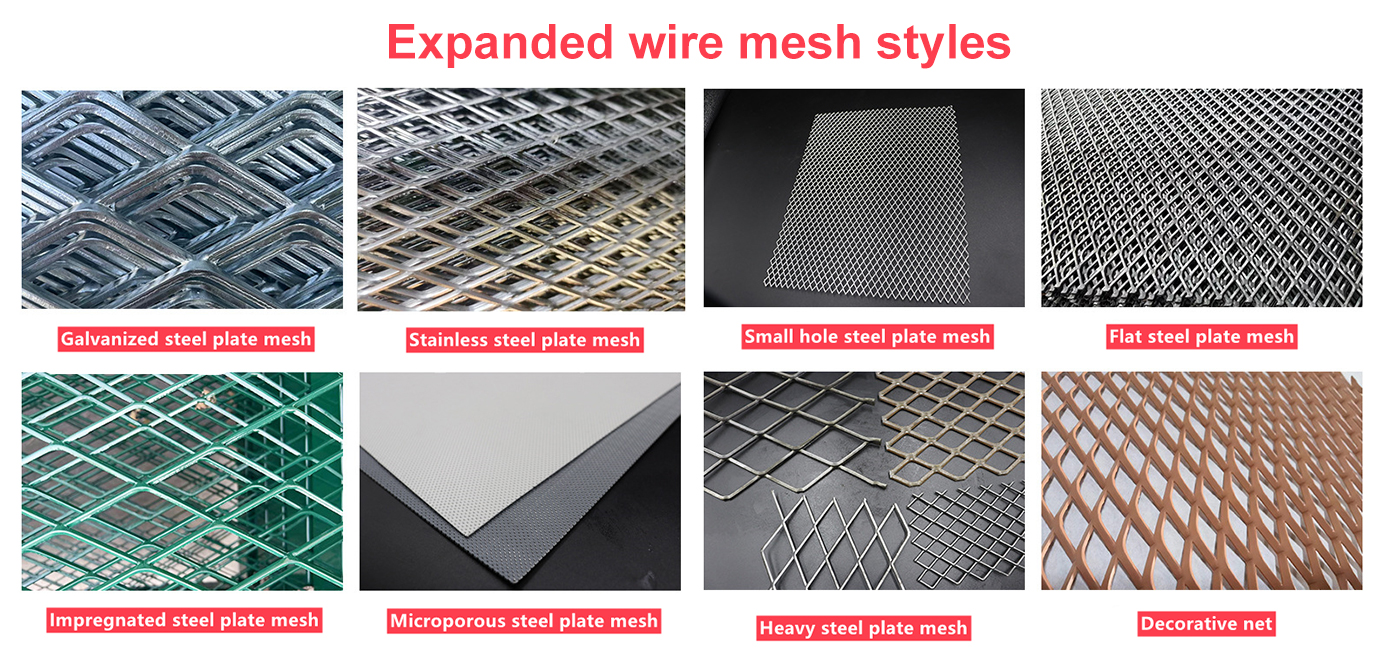

| Wire mesh types | Standard mesh,flattened mesh |
| Color | Silver,green,gold |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Long way of opening | 12.5-200mm |
| Short way of opening | 5-80mm |
| Surface treatment | Galvanized,PVC coated |
Features:
Lightweight: Despite being made of metal, expanded wire mesh is relatively lightweight due to the open structure.
High Strength: The stretching process work-hardens the metal, making the expanded wire mesh stronger than the original sheet.
Filtering Capability: The small openings can act as a filter, allowing fine particles to be separated from larger ones.
Corrosion Resistance: Depending on the type of metal used, expanded wire mesh can be highly resistant to corrosion. Stainless steel versions, for example, are commonly used in marine and high-humidity environments.
Packing:
Each pcs/roll packing by paper, 1-4 rolls/1-50pcs in a wooden box;
Size chart:
Design size (MM) | Plate size (MM) | ||
SWD | LWD | thickness | width |
10 | 25 | 0.8 | 1 |
10 | 25 | 1 | 1.1 |
10 | 25 | 1.2 | 1.1 |
12 | 30 | 1.2 | 1.5 |
12 | 30 | 0.8 | 1.4 |
16 | 38 | 1 | 2 |
16 | 38 | 1.5 | 2 |
16 | 38 | 1.5 | 2.8 |
16 | 38 | 2 | 2.8 |
15 | 40 | 1 | 1.7 |
15 | 40 | 1.2 | 1.7 |
15 | 40 | 1.5 | 1.7 |
18 | 50 | 1.2 | 2.0 |
18 | 50 | 1.5 | 2 |
18 | 50 | 2 | 2 |
22 | 50.8 | 2.3 | 2.5 |
22 | 57 | 1.5 | 2.8 |
22 | 5 | 2 | 2.8 |
22 | 57 | 3 | 3.5 |
22 | 60 | 1.5 | 2.5 |
22 | 60 | 2 | 2.5 |
35 | 16 | 2 | 3 |
35 | 16 | 3 | 4.5 |
24 | 60 | 3 | 3 |
24 | 60 | 2.5 | 3 |
36 | 100 | 2.5 | 4.1 |
36 | 100 | 3 | 4.1 |
