Expanded Metal Mesh for Grill

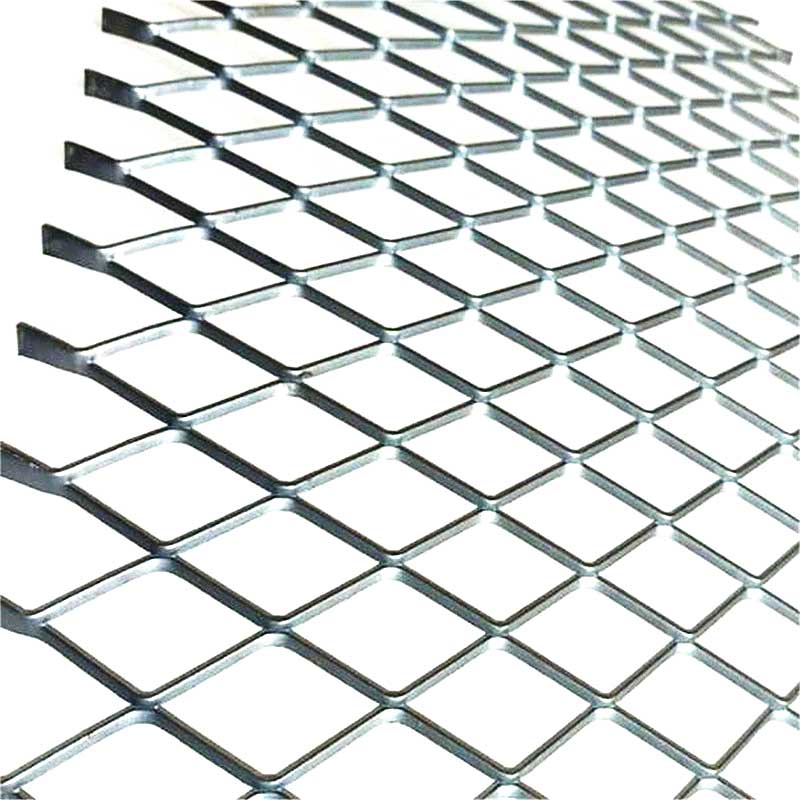

Expanded wire mesh, or expanded metal, is a type of metal wire mesh that has been cut and stretched to form a regular pattern of metal mesh-like material. The stretching process results in an impressive strength-to-weight ratio, providing robustness and versatility that are vital for various construction and outdoor projects.

Inquire Now Next Product

Specification

Expanded Plate Mesh, with strengthen mesh holes and long life usage, it is widely used in cement rendering of civil construction, the protection of equipment, manufacture of handicrafts, and protection of high grade voice box, also widely used as highway guardrail, stadium fence, road green belts fence, The heavy type Expanded Plate Mesh can be used as the pedal of tank wheels, as the platform, staircase, walkway of heavy machinery, boiler, oil mine, engine and million tons steamship. it can be also used as the reinforcing steel bar in construction industry, road and bridge

Packing:

Stainless steel copper Aluminium Expanded Metal Grill Wire Mesh

1) In Rolls: water-proof paper inside and plastic film outside

2) In Sheets: on the pallet, water-proof paper and plastic film outside

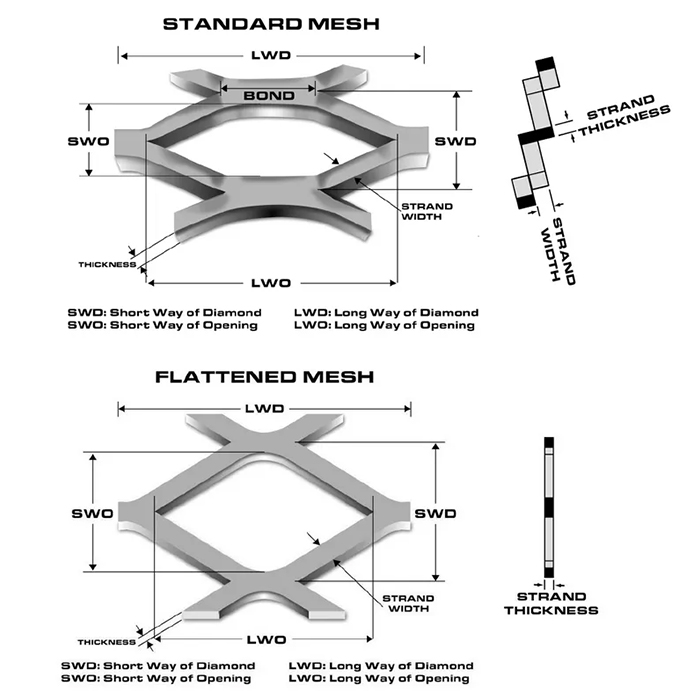

Design size(MM)		Plate SizeMM
SWD	LWD	Thickness	Width
10	25	0.8	1
10	25	1	1.1
10	25	1.2	1.1
12	30	1.2	1.5
12	30	0.8	1.4
16	38	1	2
16	38	1.5	2
16	38	1.5	2.8
16	38	2	2.8
15	40	1	1.7
15	40	1.2	1.7
15	40	1.5	1.7
18	50	1.2	2.0
18	50	1.5	2
18	50	2	2
22	50.8	2.3	2.5
22	57	1.5	2.8
22	5	2	2.8
22	57	3	3.5
22	60	1.5	2.5
22	60	2	2.5
35	16	2	3
35	16	3	4.5
24	60	3	3
24	60	2.5	3
36	100	2.5	4.1
36	100	3	4.1
