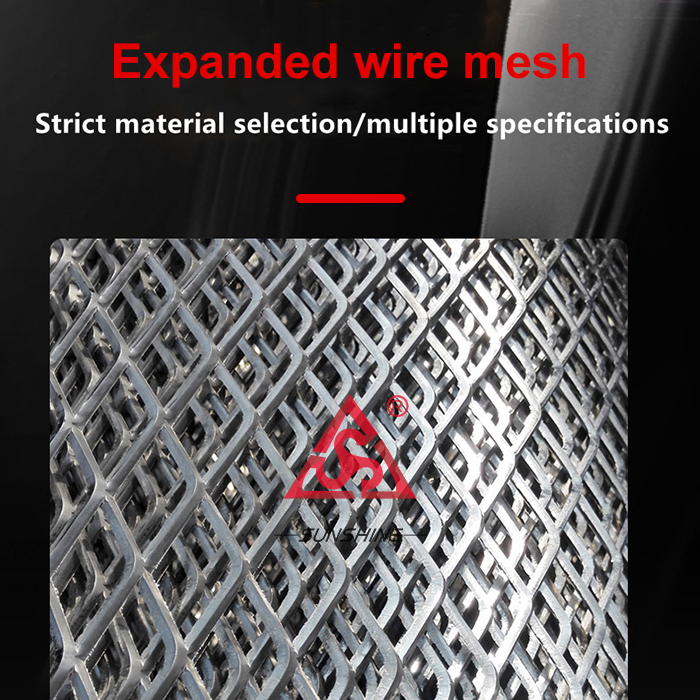

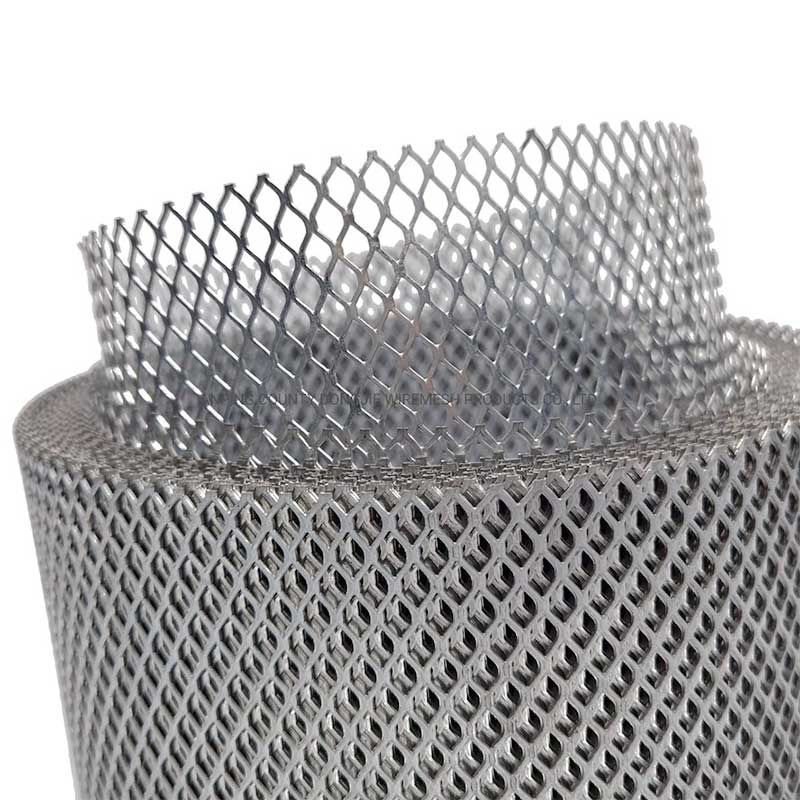

Expanded wire mesh is a versatile wire mesh that has been simultaneously slit and stretched into a rigid, open mesh structure. This makes the expanded wire mesh a highly durable material that provides good ventilation and visibility.
Specification
| Product name: | Expanded plate mesh/diamond sheet expanded wire mesh |
| Material: | Stainless Steel |
| Color: | silver |
| Weave Style: | Plain Weave |
| Surface treatment: | Galvanized, powder coating, PVDF, anodizing |
| Hole shape: | Diamond, hexagonal, square, etc |
| Color: | Red, black, silver, gold, yellow, etc |
| Packing: | Each pcs/roll packing by paper, 1-4 rolls/1-50pcs in a wooden box; |
Feature:
Versatile Use: With wide application in construction, fencing, filters, vents, security, industrial and decorative areas, expanded wire mesh is highly versatile.
Enhanced Durability: Thanks to its manufacturing process, expanded wire mesh is highly durable and resistant to wear.
Excellent Strength: Due to the expanded process, the expanded wire mesh has impressive structural integrity, strength and rigidity.
Application:
Fencing: Expanded wire mesh can be used for residential and commercial fencing due to its strength, durability, and aesthetic appeal. Expanded wire mesh can be used to create both temporary and permanent fences for various purposes, including security, privacy, and decorative purposes.
Construction: Expanded wire mesh can be used in construction as a reinforcement material for concrete and other building materials. Its strength and rigidity make expanded wire mesh ideal for reinforcing floors, walls, and ceilings.
Industrial applications: Expanded wire mesh can be used in industrial applications such as filtering, screening, and separating materials due to its strength, durability, and precision.

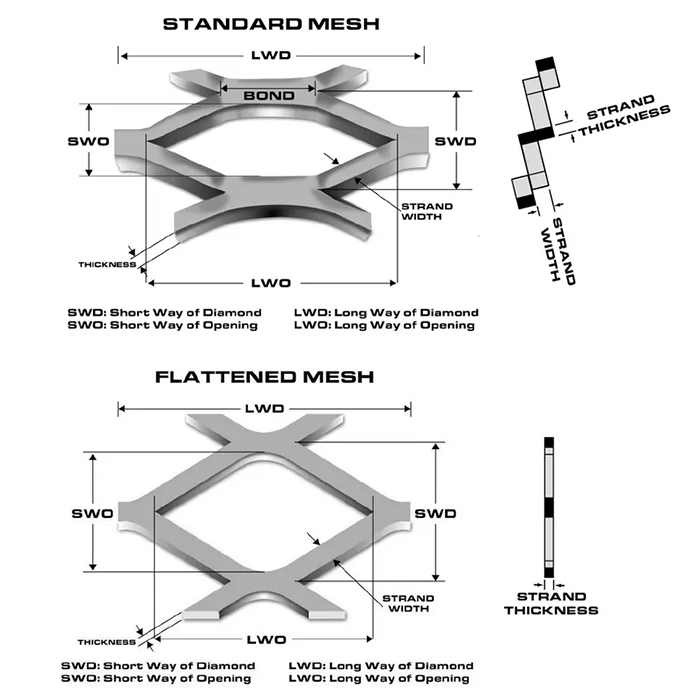

| Design Size (MM) | Plate Size (MM) | ||
| SWD | LWD | Thickness | Width |
| 10 | 25 | 0.8 | 1 |
| 10 | 25 | 1 | 1.1 |
| 10 | 25 | 1.2 | 1.1 |
| 12 | 30 | 1.2 | 1.5 |
| 12 | 30 | 0.8 | 1.4 |
| 16 | 38 | 1 | 2 |
| 16 | 38 | 1.5 | 2 |
| 16 | 38 | 1.5 | 2.8 |
| 16 | 38 | 2 | 2.8 |
| 15 | 40 | 1 | 1.7 |
| 15 | 40 | 1.2 | 1.7 |
| 15 | 40 | 1.5 | 1.7 |
| 18 | 50 | 1.2 | 2.0 |
| 18 | 50 | 1.5 | 2 |
| 18 | 50 | 2 | 2 |
| 22 | 50.8 | 2.3 | 2.5 |
| 22 | 57 | 1.5 | 2.8 |
| 22 | 5 | 2 | 2.8 |
| 22 | 57 | 3 | 3.5 |
| 22 | 60 | 1.5 | 2.5 |
| 22 | 60 | 2 | 2.5 |
| 35 | 16 | 2 | 3 |
| 35 | 16 | 3 | 4.5 |
| 24 | 60 | 3 | 3 |
| 24 | 60 | 2.5 | 3 |
| 36 | 100 | 2.5 | 4.1 |
| 36 | 100 | 3 | 4.1 |
 |  |
 |  |
