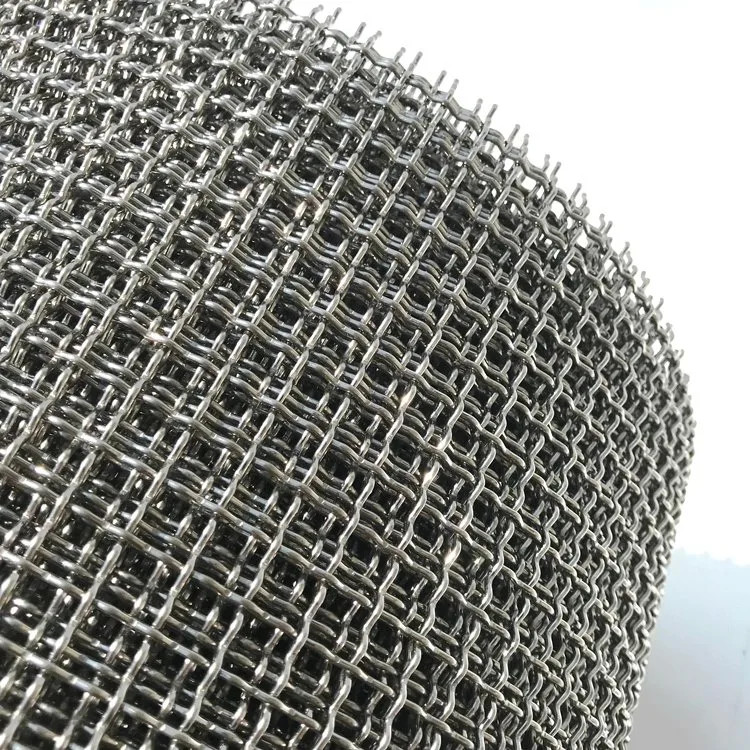

Crimped wire mesh is characteristic of its high strength, wear-resistance, and impact resistance. Crimped wire mesh is frequently used as a screening mesh for filtering sand and other materials.
Specification
Material: low carbon steel wire, galvanized steel wire or stainless steel wire
Weaving Patterns: Weaving after crimping

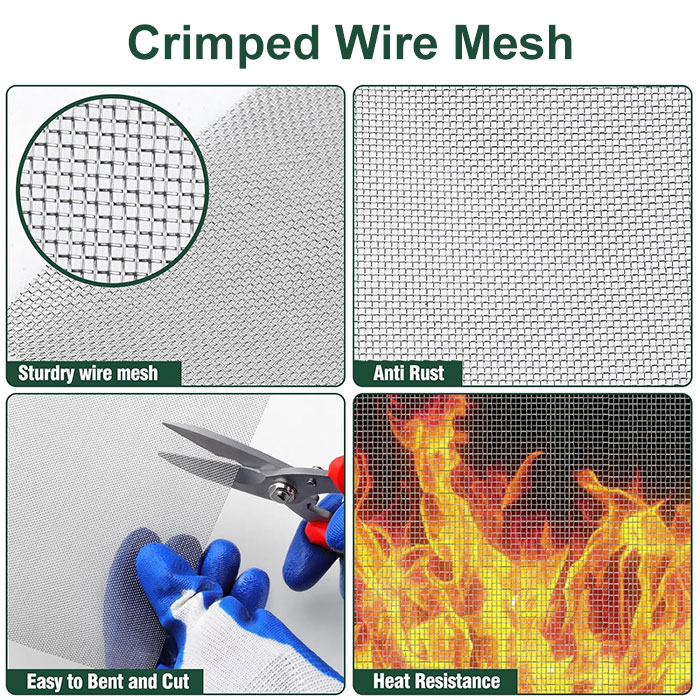

Features:
Strong Structure:Crimped wire mesh is known for its robust and stable structure, owing to the crimping process which enhances its strength and rigidity.
Heat Resistance:It's heat and corrosion resistant makes the crimped wire mesh applicable in several harsh environments.
General Use:
Screening in mine, coal factory, construction and other industries, used as making fence or filter.Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
Packing:
Packed in rolls,then with waterproof and woven bags,finally in wooden case
| Mesh | Mesh | Mesh No. | Wire Range |
| MM | Inch | MM-MM | |
| 6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
| 8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
| 9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
| 12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
| 15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
| 19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
| 25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
| 38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
| 50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
| 76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
| 101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
| 25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
| 50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
| 63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
| 76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
| 101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
| 101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
| 101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
 |  |
