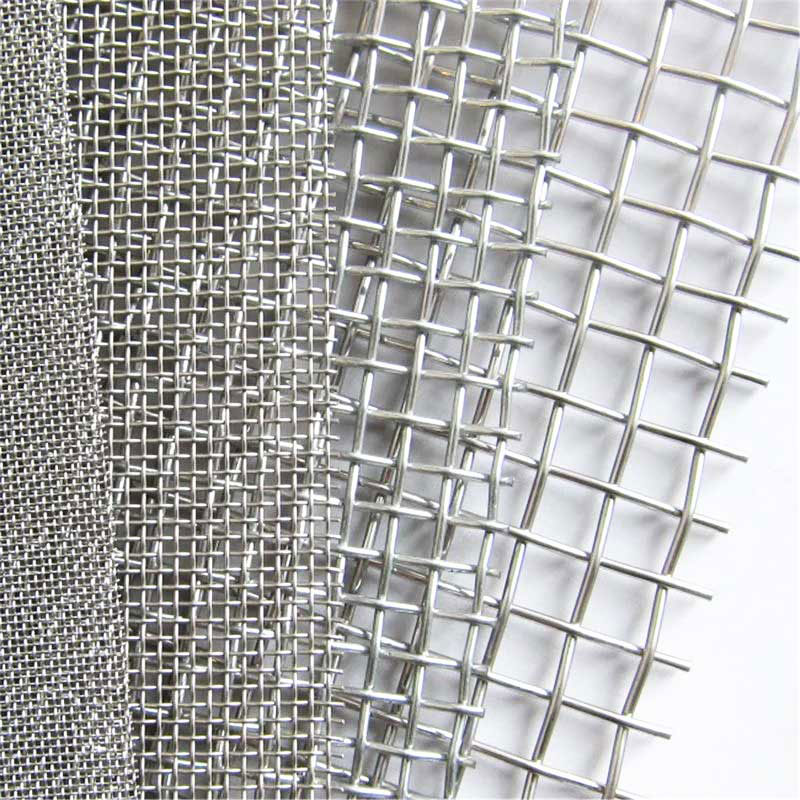

Crimped wire mesh is a type of wire mesh product where the metal wires are pre-crimped before the metal wire are woven or welded together. The term "crimped" refers to the corrugations, bends, or curves that are set into the metal wires to give them a wavy form.

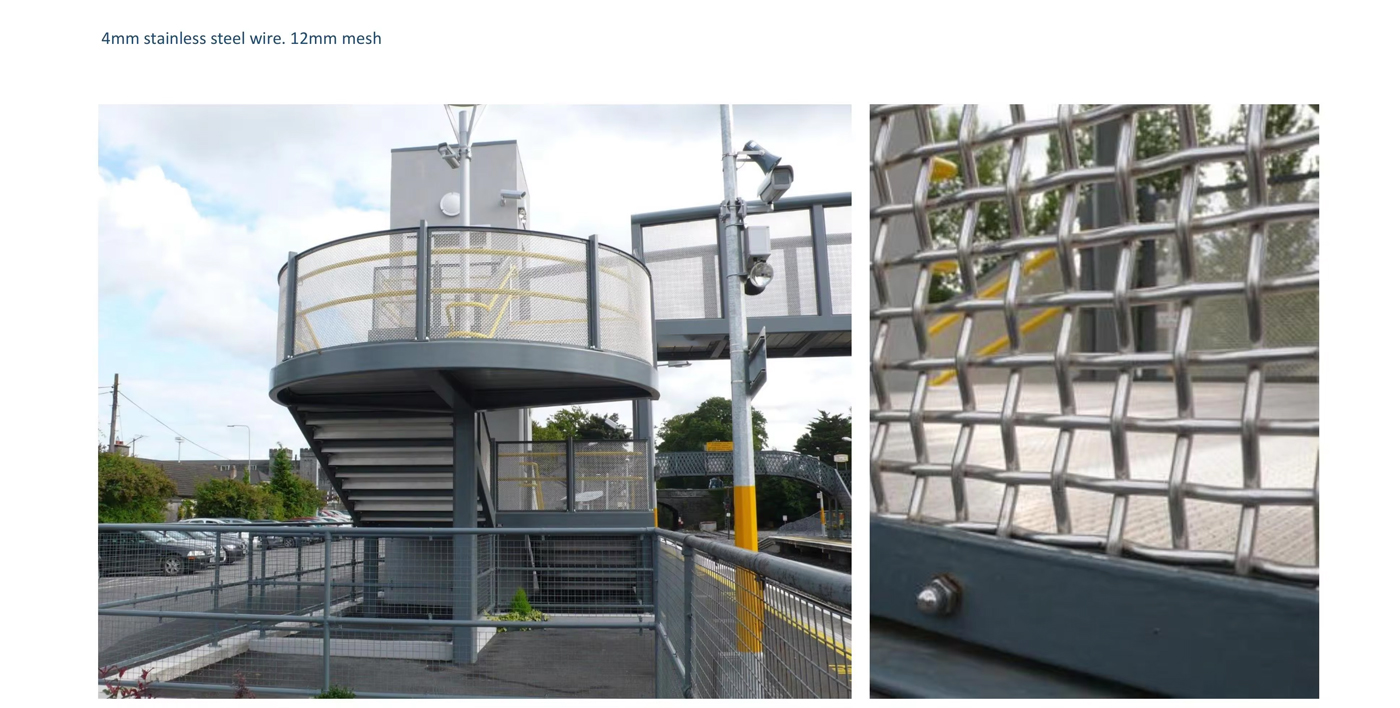

The crimped wire mesh is widely used in industries like mining, construction, petrochemical, food processing, and agriculture. Its applications include use in screens for sizing and sorting materials, in fences or barriers for security, in filters for cleaning or purifying liquids and gases, and in architectural and decorative uses.
Specification
Crimped wire mesh is an useful wire mesh that is characterized by metal wires that have been pre-crimped before being woven together to form a crimped wire mesh. The crimping process involves bending the wire in a zigzag pattern, which allows the wires to remain in place after they've been woven or welded together.
The crimped wire mesh is typically made from materials such as stainless steel, galvanized low carbon steel.The crimped design provides the crimped wire mesh with additional strength, rigidity, and resistance to wear and tear, making the crimped wire mesh highly durable.
Features:
Pre-Crimped Design: The wires are crimped before being woven into a mesh. This pre-crimping process gives the wire mesh additional strength, rigidity, and stability.
Diverse Applications: Thanks to its strength and durability, crimped wire mesh is used in a wide range of industries, from construction and mining to food processing and agriculture.
Durability: The crimping process and the materials used make the mesh resistant to wear, tear, and corrosion, offering a long service life.
Packing:
PE rainproof cloth outside each roll, then packed in plywood pallet. We can also pack the meshes as customers' request
Size chart:
Mesh/(mm) | Mesh/(Inch) | Mesh No. | Wire diameter range (mm-mm) |
6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
