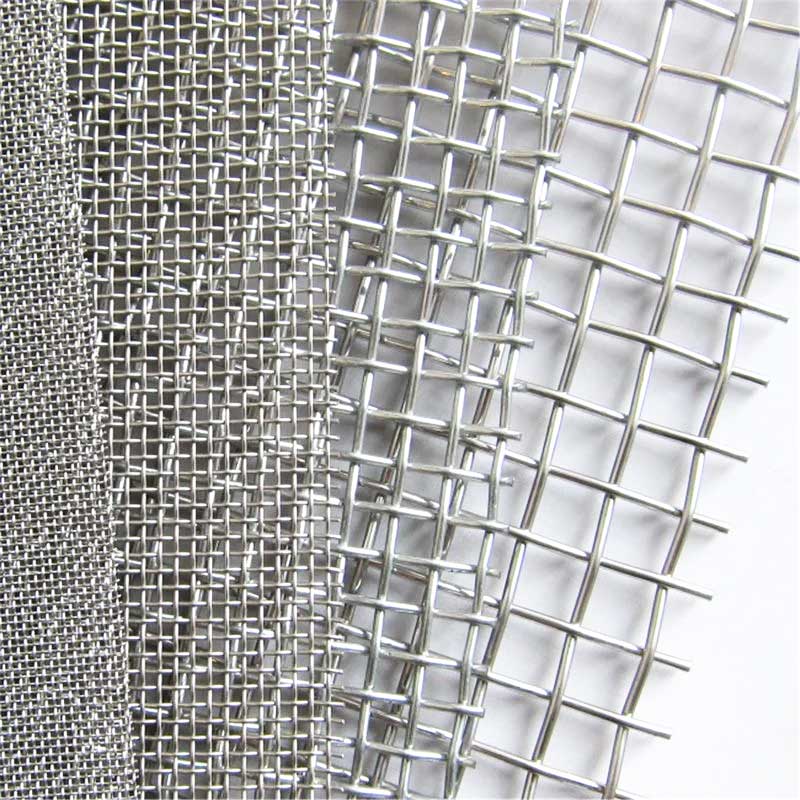

Plain/Twill weave crimped wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.
Specification
Product name: | Crimped wire mesh |
Material: | Low carbon steel wire,galvanized iron wire,stainless steel |
Color: | silver |

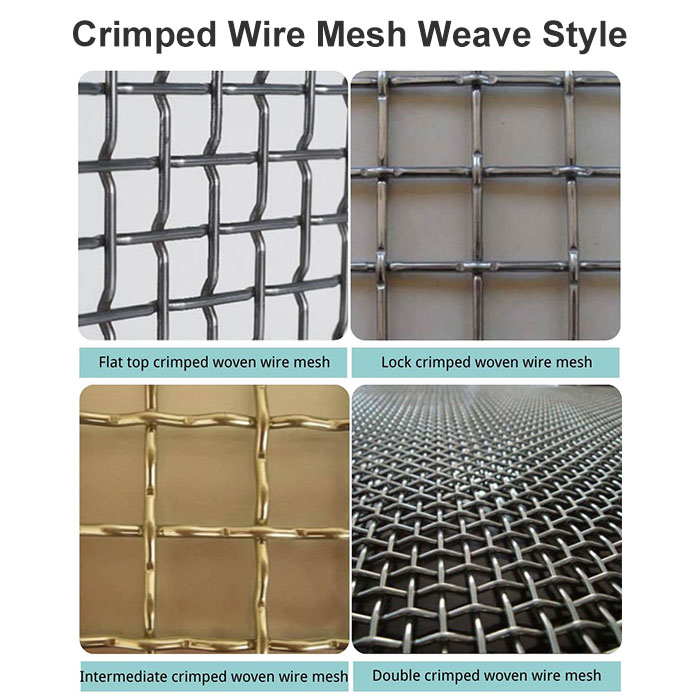

Types: | Plain hooked edge,inside reinforced formed edge,welded bent plate edge,reinforced shroud edge,double folded reinforced shroud edge,end tension reinforced shroud edge |
Surface treatment: | galvanized |
Hole shape: | square |
Packing: | PE rainproof cloth outside each roll, then packed in plywood pallet. We can also pack the meshes as customers' request |

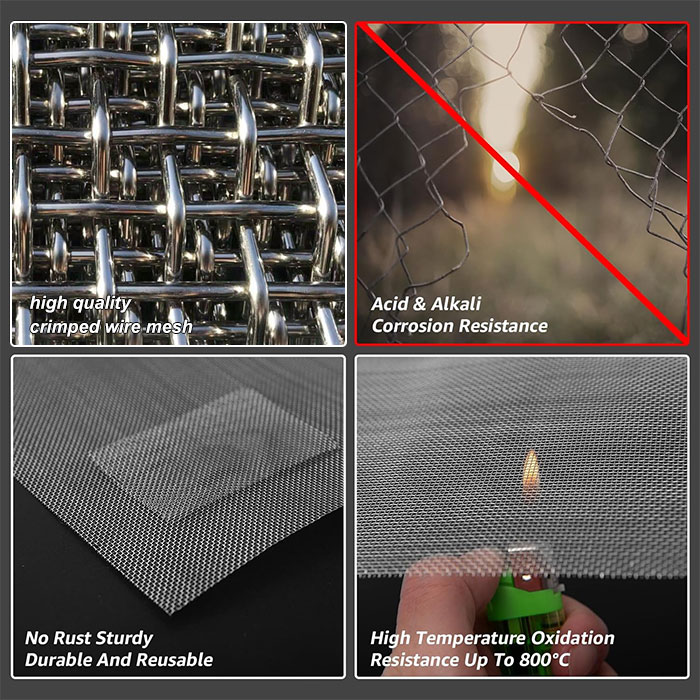

GI crimped wire mesh feature:
Corrosion Resistance: As a galvanized product, GI crimped wire mesh has excellent resistance to rust and corrosion, making the galvanized crimped wire mesh very durable.
Strength: The crimping process adds rigidity and strength to the wire mesh, making the crimped wire mesh capable of withstanding substantial pressure.
Thermal Resistance: GI crimped wire mesh is also thermal resistant, which makes it suitable for applications in various conditions.
Gi crimped wire mesh applications:
Fencing:
GI crimped wire mesh is commonly used for residential and commercial fencing due to its strength, durability, and aesthetic appeal. GI crimped wire mesh can be used to create both temporary and permanent fences for various purposes, including security, privacy, and decorative purposes.
Animal enclosures:
GI crimped wire mesh is ideal for creating animal enclosures such as dog kennels, chicken coops, and horse stables. Its strength and durability make GI crimped wire mesh resistant to damage from animals, while its ventilation properties ensure proper airflow and comfort for the animals.
Construction:
GI crimped wire mesh can be used in construction as a reinforcement material for concrete and other building materials. Its strength and rigidity make the GI crimped wire mesh ideal for reinforcing floors, walls, and ceilings.
Size chart:
Mesh | Mesh | Mesh No. | Wire Range |
MM | Inch | MM-MM | |
6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
