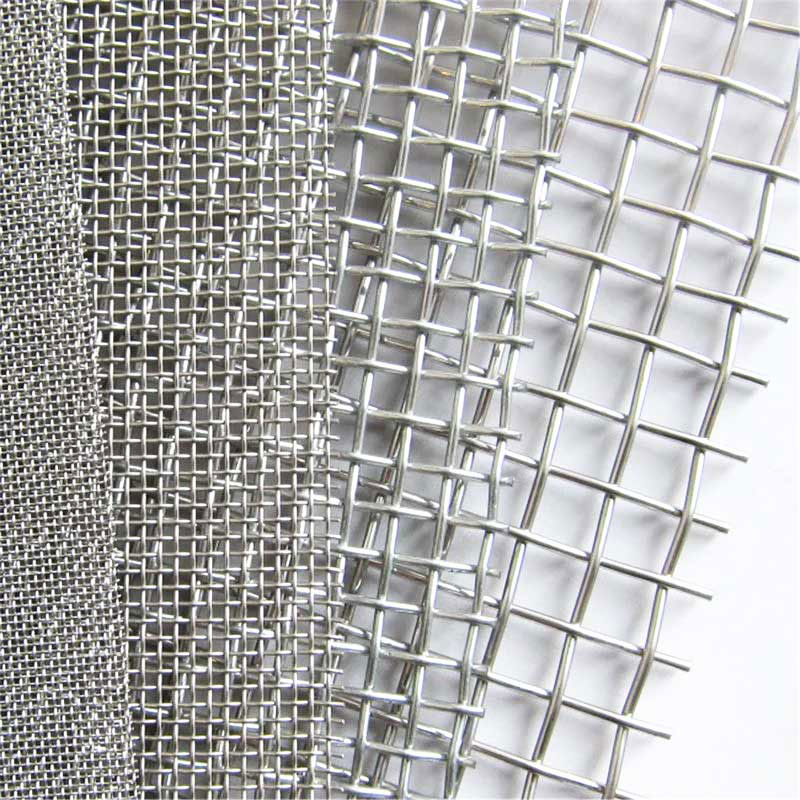

Crimped wire mesh is a type of wire mesh product where the metal wires are pre-crimped before the metal wire are woven or welded together. The term "crimped" refers to the corrugations, bends, or curves that are set into the metal wires to give them a wavy form.
The crimped wire mesh is widely used in industries like mining, construction, petrochemical, food processing, and agriculture. Its applications include use in screens for sizing and sorting materials, in fences or barriers for security, in filters for cleaning or purifying liquids and gases, and in architectural and decorative uses.
Specification
The metal wires used in crimped wire mesh can be made from a variety of materials, including stainless steel, high quality galvanized iron wire(Q195/Q235) and more. The choice of material depends on the specific application and environment in which the crimped wire mesh will be used.
Features:
Versatility: Due to its strength and durability, crimped wire mesh is used in a wide range of applications. Crimped wire mesh can be used in construction for fencing, in mining for screening, in agriculture for animal fencing, and in the food industry for drying and filtering processes.
Customizable: Crimped wire mesh is available in different sizes, wire diameters, and crimp styles. This allows crimped wire mesh to be tailored to specific needs and applications.
Durability: The crimping process and the choice of material make the crimped wire mesh resistant to wear, tear, and corrosion. This means the crimped wire mesh can withstand harsh conditions and has a long service life.
Good Filtration and Ventilation: The spaces between the wires in crimped wire mesh allow for effective filtration and good ventilation. This makes the crimped wire mesh ideal for use in screens and filters.
Crimped wire mesh is highly versatile and is used in a wide range of applications. The crimped wire mesh is commonly used in industries such as construction (for concrete reinforcement or fencing), mining (for screening and sorting), agricultural (for animal fencing), and even in the food industry (for drying and filtering processes). Its unique properties of strength, durability, and flexibility make the crimped wire mesh an ideal choice for these and many other applications.
Packing:
PE rainproof cloth outside each roll, then packed in plywood pallet. We can also pack the meshes as customers' request
Size chart:
Mesh/(mm) | Mesh/(Inch) | Mesh No. | Wire diameter range (mm-mm) |
6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
