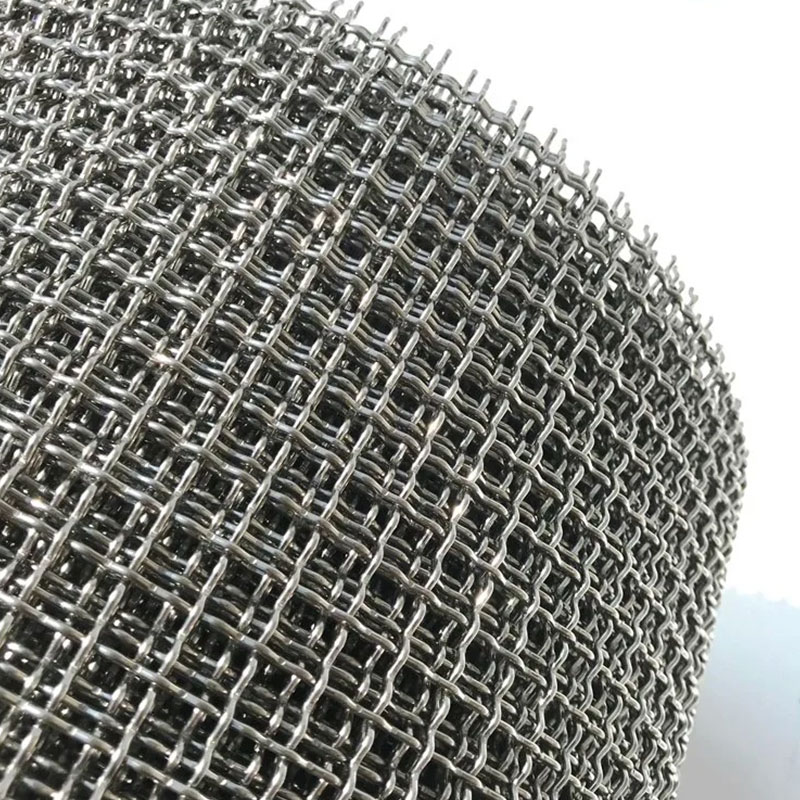

Crimped wire mesh is a type of wire mesh product where the metal wires are pre-crimped before the metal wire are woven or welded together. The term "crimped" refers to the corrugations, bends, or curves that are set into the metal wires to give them a wavy form.
The crimped wire mesh is widely used in industries like mining, construction, petrochemical, food processing, and agriculture. Its applications include use in screens for sizing and sorting materials, in fences or barriers for security, in filters for cleaning or purifying liquids and gases, and in architectural and decorative uses.
Specification
Features:
Pre-Crimped Design: The metal wires in crimped wire mesh are pre-crimped before being woven or welded. This gives the crimped wire mesh additional strength and rigidity, and allows for tighter weaves.

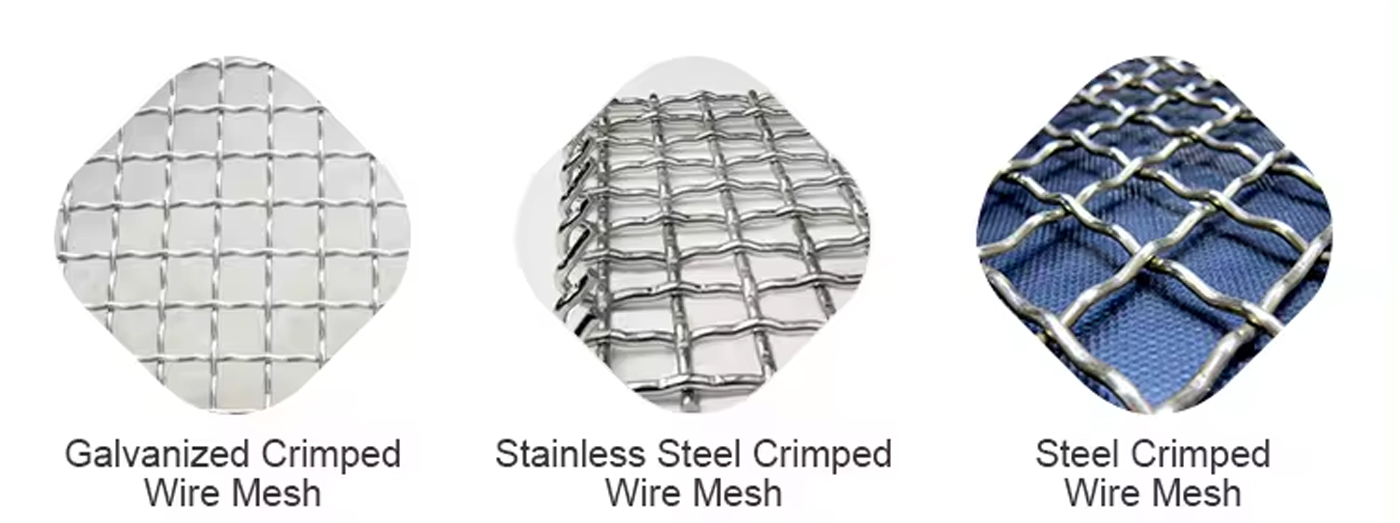

Versatility: Crimped wire mesh comes in various materials, sizes, and crimp styles, making it adaptable to many different uses.
Durability: The materials used, such as stainless steel or galvanized low carbon steel wire, make the crimped wire mesh resistant to rust, corrosion, and harsh weather conditions.
High Strength: The crimping process gives the crimped wire mesh a high level of tensile strength, allowing it to withstand substantial weight and pressure.
Packing:
PE rainproof cloth outside each roll, then packed in plywood pallet. We can also pack the meshes as customers' request
Size chart:
Mesh/(mm) | Mesh/(Inch) | Mesh No. | Wire diameter range (mm-mm) |
6.35X6.35 | 1/4"X1/4" | 4 | 0.45--0.70 |
8.47X8.47 | 1/3"X1/3" | 3 | 0.50--0.80 |
9.53X9.53 | 3/8"X3/8" | 2.6 | 0.50--0.90 |
12.7X12.7 | 1/2"X1/2" | 2 | 0.50--1.20 |
15.9X15.9 | 5/8"X5/8" | 1.6 | 0.60--1.20 |
19.1X19.1 | 3/4"X3/4" | 1.33 | 0.60--1.60 |
25.4X25.4 | 1"X1" | 1 | 0.65--1.90 |
38.1X38.1 | 1-1/2"X1-1/2" | 0.67 | 1.00--2.00 |
50.8X50.8 | 2"X2" | 0.5 | 1.20--2.10 |
76.2X76.2 | 3"X3" | 0.333 | 1.70--2.50 |
101.6X101.6 | 4"X4" | 0.25 | 1.70--2.50 |
25.4x12.7 | 1"x1/2" | 1.5 | 0.65--1.60 |
50.8x25.4 | 2"x1" | 0.75 | 1.20--1.90 |
63.5x50.8 | 2-1/2"x2" | 0.45 | 1.70--2.50 |
76.2x50.8 | 3"x2" | 0.42 | 1.70--2.50 |
101.6x50.8 | 4"x2" | 0.375 | 1.70--2.50 |
101.6x63.5 | 4"x2-1/2" | 0.325 | 1.70--2.50 |
101.6x76.2 | 4"x3" | 0.29 | 1.70--2.50 |
