The PVC-coated chain link fence is a type of wire mesh fencing that features a protective layer of polyvinyl chloride (PVC), a form of plastic, applied over the low carbon steel wires. This coating provides several benefits over traditional galvanized chain link fences, including enhanced durability and aesthetic appeal.
Specification
Material: high-quality low carbon steel wire
Tensile strength: 350-650 Newtons/mm².

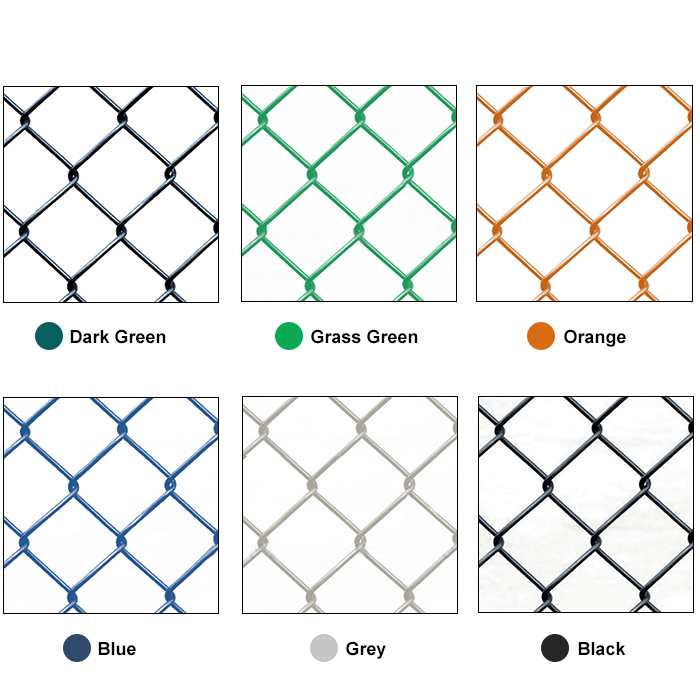

Color: PVC coated plastic can be made into various colors according to customer needs.
PVC coated chain link fence is an excellent choice for those seeking a blend of durability, aesthetics, and cost-effectiveness. With Sunshine Fencing, you can expect top-quality products and services that ensure your fencing needs are met with professionalism and expertise.For more details, you can visit Sunshine Fencing;s official website or contact customer service for personalized assistance.
 |  |
Features: Electro-galvanized wire PVC coated plastic; PVC coated plastic chain link mesh color is different, harmonious with the surrounding environment, beautiful, with strong environmental protection, anti-corrosion properties and antioxidant characteristics. Wide mesh width and thick wire diameter for long life; The weaving is simple, the PVC coated chain link fence is easy to transport, easy to install.
Application: Protection of machinery and equipment, highway guardrail, sports place fence, road green belt protection net. After the chain link mesh is made into a box-like container, it is filled with loose stones, etc., which can be used to protect and support seawalls, hillsides, roads and bridges, reservoirs and other civil engineering, flood control and flood resistance, especially suitable for the protection of private homes, zoo fences, parks and gardens. Warehouse, marine fishing fence, construction site fence, residential security protection, etc.

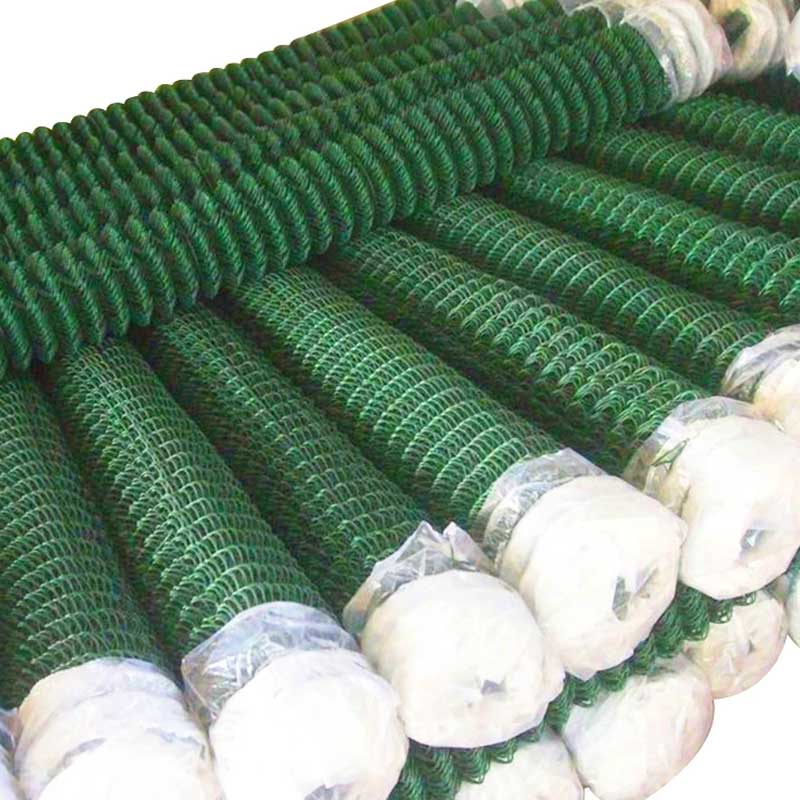

Packing: PVC coated chian link fence is generally wrapped with woven bags at both ends.
Size chart:
Mesh/MM | Mesh/Inch | Cardinal Number | before /after PVC Coated MM/MM---MM/MM |
10MM | 3/8 " | 2.57 | 0.60/1.00--1.00/1.50 |
13MM | 1/2 " | 1.98 | 0.60/1.00--1.00/1.50 |
16MM | 5/8 " | 1.61 | 0.80/1.20--1.20/2.00 |
20MM | 3/4 " | 1.29 | 1.20/2.20--1.20/2.00 |
26MM | 1" | 0.99 | 1.20/2.20--1.50/2.50 |
31MM | 1-1/4" | 0.83 | 1.50/2.50--2.00/3.00 |
41MM | 1-1/2 " | 0.63 | 1.50/2.50--2.00/3.00 |
51MM | 2 " | 0.51 | 1.70/2.70--2.40/3.50 |
63MM | 2-1/2 " | 0.41 | 1.70/2.70--2.40/3.50 |
76MM | 3" | 0.34 | 2.60/3.80--3.00/4.50 |
100MM | 4" | 0.26 | 2.60/3.80--3.00/4.50 |
