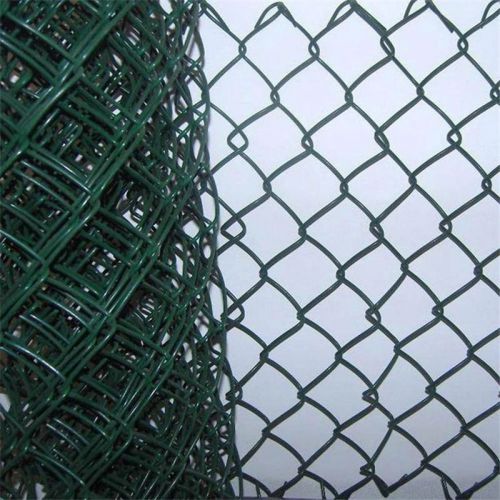

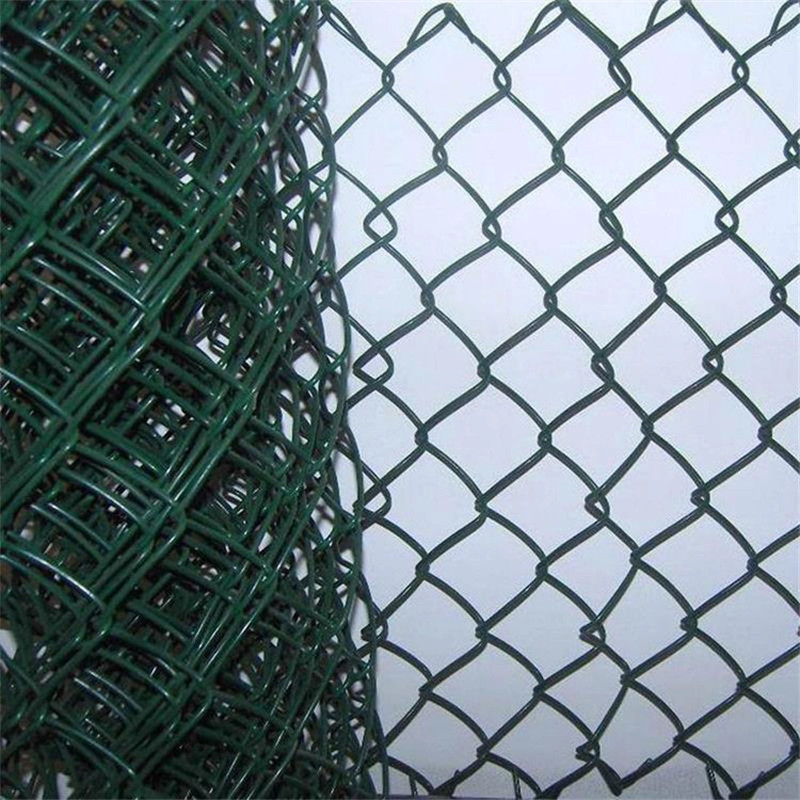

The plastic diamond chain link fence, also known as the PVC-coated or vinyl-coated diamond chain link fence, is a type of wire mesh fencing that combines the strength and security of traditional diamond chain link with the durability and aesthetic appeal of a plastic coating.
Specification
The PVC coated chain link fence also called plastic coated diamond wire mesh are made of high quality low carbon steel wire that has been covered with a layer of PVC coating. This coating not only protects the diamond wire mesh from the erosion caused by external wind and rain, but it also comes in various colors such as green, white, yellow, and more. Therefore, many people use this PVC coated chain link wire mesh as a fence for farms or other buildings. The PVC coated chain link fence is not only diverse in color, but also has uniform mesh holes, making the plastic coated chian link fence easy to cut and install, which is very suitable for long-term outdoor use.
| Mesh | Mesh | Cardinal Number | Before /After PVC Coated MM/MM---MM/MM |
| MM | Inch | ||
| 10MM | 3/8 " | 2.57 | 0.60/1.00--1.00/1.50 |
| 13MM | 1/2 " | 1.98 | 0.60/1.00--1.00/1.50 |
| 16MM | 5/8 " | 1.61 | 0.80/1.20--1.20/2.00 |
| 20MM | 3/4 " | 1.29 | 1.20/2.20--1.20/2.00 |
| 26MM | 1" | 0.99 | 1.20/2.20--1.50/2.50 |
| 31MM | 1-1/4" | 0.83 | 1.50/2.50--2.00/3.00 |
| 41MM | 1-1/2 " | 0.63 | 1.50/2.50--2.00/3.00 |
| 51MM | 2 " | 0.51 | 1.70/2.70--2.40/3.50 |
| 63MM | 2-1/2 " | 0.41 | 1.70/2.70--2.40/3.50 |
| 76MM | 3" | 0.34 | 2.60/3.80--3.00/4.50 |
| 100MM | 4" | 0.26 | 2.60/3.80--3.00/4.50 |
