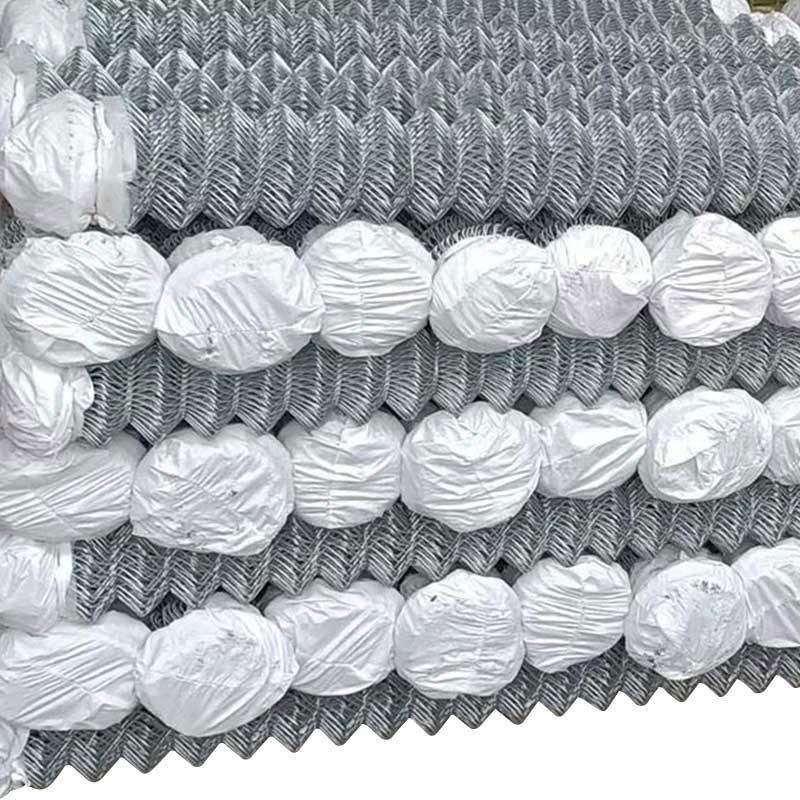

Hot dipped galvanized iron wire woven chain link fence

Raw material:high quality galvanized low carbon steel wire

Anti-rust

High tensile strength

Easy Installation

Cost-Effective

Inquire Now Next Product

Specification

Galvanized chain link fence introduction

The galvanized chain link fence is made of high quality low carbon steel wire which undergone hot-dipped galvanization to prevent rust and corrosion.

The galvanized iron chain link fence is made by weaving low carbon steel wires together to form a diamond pattern, which is both strong and flexible.

Here are the common sizes of galvanized chain link fences.

Mesh Opening		Wire Thickness		Height	Length
inch	mm	bwg	mm	M	m
3/4	20 X 20	18; 16; 14	1.2-2.1	0.2-4	10; 15; 20; 25; 30
1	25 X 25	18; 16; 14	1.2-2.1	0.2-4	10; 15; 20; 25; 30
1-1/4	30 X 30	18; 16; 14;12; 10	1.2-3.4	0.2-4	10; 15; 20; 25; 30
1-1/2	40 X 40	18; 16; 14;12; 10;8	1.2-4	0.2-4	10; 15; 20; 25; 30
2	50 X 50	16; 14;12; 10;8	1.6-4	0.2-4	10; 15; 20; 25; 30
2-3/8	60 X 60	16; 14;12; 10	1.6-3.4	0.5-5	10; 15; 20; 25; 30
3	75 X 75	14; 12; 10	2.1-3.4	0.5-5	10; 15; 20; 25; 30

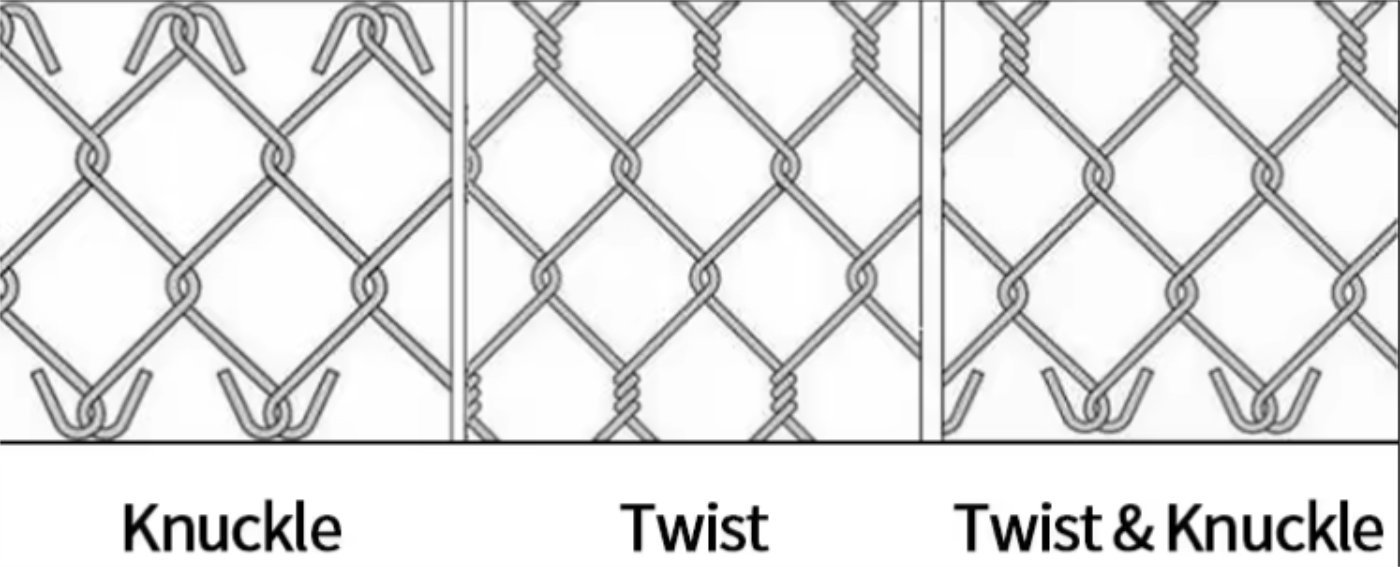

Galvanized chian link fence types

Hot dipped galvanized iron wire woven chain link fence

Galvanized chain link fence features

Durability: The galvanization process coats the low carbon steel wire in a layer of zinc, which protects it from rust and corrosion. This makes galvanized chain link fences incredibly durable and able to withstand harsh weather conditions.

Low Maintenance: Once installed, galvanized chain link fences require minimal maintenance. The galvanized coating prevents rust, which is a common issue with other types of fences.

Security: The interwoven steel wire design offers a sturdy barrier that is difficult to break through, making these galvanized chain link fences an excellent choice for security purposes.

Cost-Effective: Compared to other fencing materials, galvanized chain link fences are relatively inexpensive. The galvanized chain link fences are also easy and quick to install, which can save on labor costs.

Hot dipped galvanized iron wire woven chain link fence
