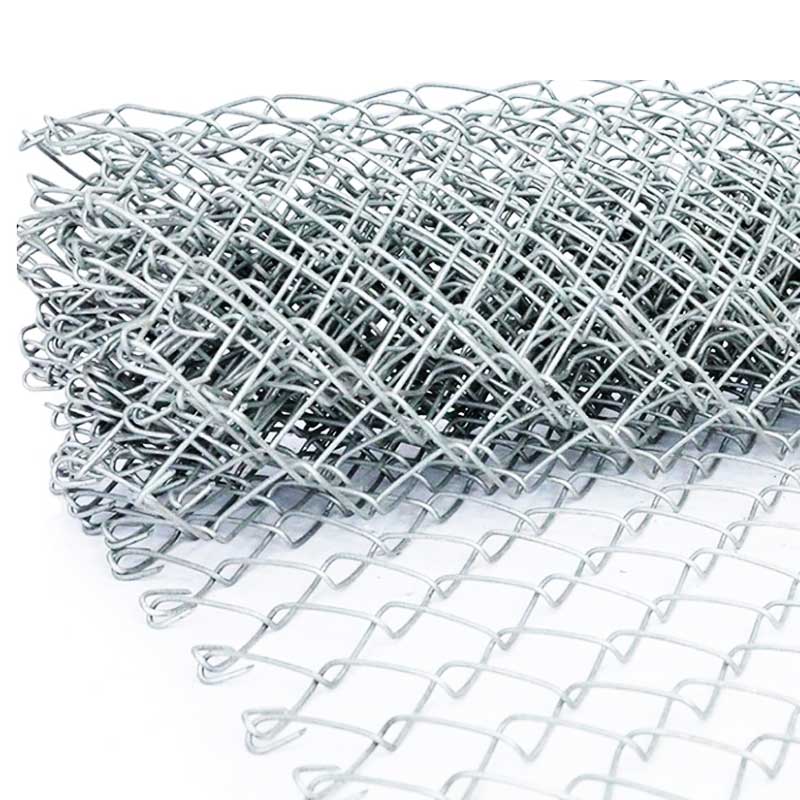

The galvanized chain link fence is a type of wire mesh fencing that has been treated with a layer of zinc through a process called galvanization. This treatment is applied to the low carbon steel wires before the diamond wire mesh are woven into the characteristic diamond-shaped pattern of chain link fence. The purpose of galvanization is to protect the low carbon steel from corrosion by creating a sacrificial layer of zinc that will oxidize instead of the low carbon steel in the presence of water and air.
Specification
Material: high quality low carbon steel wire(Q195/Q235)
Features: Smooth surface, durable, knit simple and elegant appearance. Easy to transport and install. Galvanized chain link fence has silver white color, with decorative and antiseptic features in harmony with the environment. The galvanized chain link fence are popular protective fences at home and abroad.
Surface treatment: Electro-galvanized chain link fence, Hot-dipped galvanized chain link fence
Application: Also used in machinery protection, fences for roads, railways, etc. It can be made into boxes to hold stones and sand to protect the bank, hillside, bridge and other related civil engineering against floods. Making handicrafts as fences for warehouses, fishing nets, construction, house protection.
 |  |
Size chart:
| Mesh | Mesh | Cardinal Number | Wire Range |
| MM | Inch | MM-MM | |
| 10MM | 3/8 " | 2.57 | 0.80MM--1.50MM |
| 13MM | 1/2 " | 1.98 | 0.90MM--1.60MM |
| 16MM | 5/8 " | 1.61 | 1.00MM--1.70MM |
| 20MM | 3/4 " | 1.29 | 1.20MM--1.80MM |
| 26MM | 1" | 0.99 | 1.40MM--1.80MM |
| 31MM | 1-1/4" | 0.83 | 1.60MM--2.40MM |
| 41MM | 1-1/2 " | 0.63 | 1.80MM--3.00MM |
| 51MM | 2 " | 0.51 | 2.00MM--3.20MM |
| 63MM | 2-1/2 " | 0.41 | 2.20MM--3.50MM |
| 76MM | 3" | 0.34 | 3.00MM--4.50MM |
| 100MM | 4" | 0.26 | 3.50MM--5.00MM |
