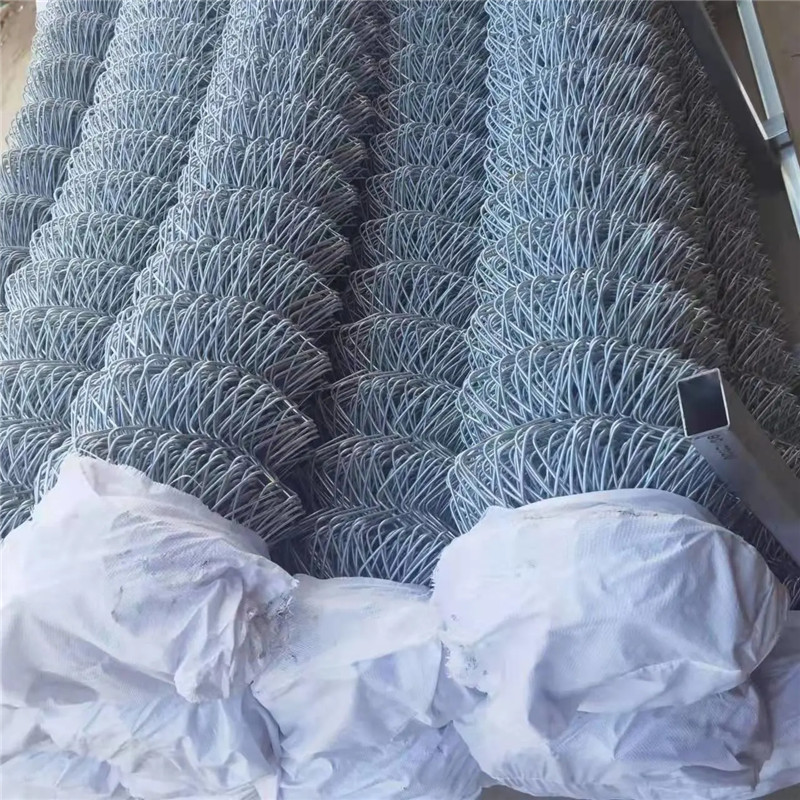

The galvanized diamond chain link fence is a type of wire mesh fencing that has been treated with a protective zinc coating to enhance its durability and resistance to corrosion. The term "diamond" refers to the shape of the openings in the galvanized chian link wire mesh, which are woven in a pattern that resembles a series of interlocking diamonds.
Specification
The galvanized chain link fence are made of high quality low carbon steel iron wire and undergone galvanization manufacturing process(electro-galvanized or hot dipped galvanized).The galvanized chain link fence also called diamond wire mesh due to the diamon shape holes.
You can choose knuckle edge or barb edge galvanized chain link fence,both are easy to bend and provide high strength,which are widely used for farm fencing or highway divider.
Features:
Corrosion resistance: The zinc coating on galvanised chain link provides excellent protection against rust and corrosion, making it ideal for outdoor use and harsh environments.
Versatile: Galvanised chain link can be used for a variety of applications, including fencing, animal enclosures, security barriers, and decorative purposes.
Easy to install: Gi chain link is easy to cut and shape, making the gi chain link fence simple to install and customize to fit your specific needs.
Applications:
Farm Fence,highway divider, sports venues fence,etc
Size chart:
Mesh | Mesh | Cardinal Number | Wire Range |
MM | Inch | MM-MM | |
10MM | 3/8 " | 2.57 | 0.80MM--1.50MM |
13MM | 1/2 " | 1.98 | 0.90MM--1.60MM |
16MM | 5/8 " | 1.61 | 1.00MM--1.70MM |
20MM | 3/4 " | 1.29 | 1.20MM--1.80MM |
26MM | 1" | 0.99 | 1.40MM--1.80MM |
31MM | 1-1/4" | 0.83 | 1.60MM--2.40MM |
41MM | 1-1/2 " | 0.63 | 1.80MM--3.00MM |
51MM | 2 " | 0.51 | 2.00MM--3.20MM |
63MM | 2-1/2 " | 0.41 | 2.20MM--3.50MM |
76MM | 3" | 0.34 | 3.00MM--4.50MM |
100MM | 4" | 0.26 | 3.50MM--5.00MM |
